Hopscript: Hopscotch Text Language (Concept)

This is Python right? So it’s not type safe?

You try could making a “stage” a dummy class at first with empty values so it doesn’t crash upon reference

Then you can reassign stage when the object is properly initialized

4 Likes

I am using a different class that resolves to the correct data once the objects are loaded. It’s mostly working now

Edit: YES THIS IS WORKING

6 Likes

I’m a bit concerned about code readability here, with multiple available syntax options… I don’t think including two ways to write the same and/or operator is a very elegant solution, especially for readability’s sake.

Does ELSE() or AND() really need capitalization? I feel like it looks off when you compare it with the initial if statement’s lowercase.

I’m super excited to see it working :D

4 Likes

If I do allow both, I would most likely warn the user if the code uses both instead of sticking to one.

Only because they are keywords in python, so yes they do unfortunately. It’s only those logical statements though thankfully

:tada:

4 Likes

Bump…

2 Likes

I’ve been playing around with something like this somewhat based on Hopscotch Notation (& Compiler) and I was able to convert this:

bear "Bear":
	When game_starts:
		repeat_forever:
			change_pose
			wait(0.1)

into this project:
https://c.gethopscotch.com/p/13n237bihc

7 Likes

I’ve made Flappy bird! by Petrichor from this code:

square bottom_pipe:
	When game_starts:
		set_z_index(1)
		create_a_clone_of_this_object
		create_a_clone_of_this_object
		set_width(150, height: 300)
		set_color(h(119.4, s: 53.6, b: 71))
		set_background(color: h(211.6, s: 48.7, b: 88.6))
		speed = 10
		repeat_forever:
			check_once_if(bird.lives_count > 0):
				increase(Game.score, by: 1)
				increase(speed, by: 0.1)
			set_position(to_x: Game.width + Self.width / 2, y: random(0, to: Self.height / 2))
			broadcast_message(named: "Reset pipes")
			repeat(times: (Self.x_position + Self.width) / speed):
				set_position(to_x: Self.x_position - speed, y: Self.y_position)
	When object_is_cloned:
		set_z_index(1)
		check_if_else(Self.clone_index == 1):
			set_width(170, height: 50)
			set_color(h(119.4, s: 53.6, b: 71))
			repeat_forever:
				set_position(to_x: Original_object.x_position, y: Original_object.y_position + Self.height / 2 + Original_object.height / 2)
		else:
			set_color(h(100, s: 53.6, b:81))
			set_width(10, height: 45)
			repeat_forever:
				set_position(to_x: Original_object.x_position - 79, y: Original_object.y_position + Self.height / 2 + Original_object.height / 2)
	custom_rule kill_bird_on_contact:
		When absolute_value(Self.x_position - bird.x_position) < (Self.width + bird.width) / 2 - 10 and absolute_value(Self.y_position - bird.y_position) < (Self.height + bird.height) / 2 - 10:
			broadcast_message(named: "Die")

square top_pipe:
	gap_size = "Nonsensical"
	When game_starts:
		set_z_index(1)
		create_a_clone_of_this_object
		create_a_clone_of_this_object
		set_width(150, height: 300)
		set_color(h(119.4, s: 53.6, b: 71))
		repeat_forever:
			set_position(to_x: bottom_pipe.x_position, y: max(bottom_pipe.y_position + bottom_pipe.height / 2 + Self.height / 2 + gap_size, Game.height - Self.height/2))
	When object_is_cloned:
		set_z_index(1)
		check_if_else(Self.clone_index == 1):
			set_width(170, height: 50)
			set_color(h(119.4, s: 53.6, b: 71))
			repeat_forever:
				set_position(to_x: Original_object.x_position, y: Original_object.y_position - Self.height / 2 - Original_object.height / 2)
		else:
			set_color(h(100, s: 53.6, b:81))
			set_width(10, height: 300)
			repeat_forever:
				set_position(to_x: Original_object.x_position - 69, y: Original_object.y_position)
	When i_get_a_message("Reset pipes"):
		check_once_if(Self.clone_index == 0):
			gap_size = random(300, to: 500)
	custom_rule kill_bird_on_contact

bird bird:
	When game_starts:
		set_z_index(2)
		Self.lives_count = 4
		set_position(to_x: 100, y: Game.height * 0.66)
	When is_tapped(Screen):
		Self.vertical_velocity = 5
	When game_is_playing:
		increase(Self.vertical_velocity, by: -0.5)
		set_position(to_x: Self.x_position, y: max(0,Self.y_position + Self.vertical_velocity))
	When game_is_playing:
		set_angle(max(min(Self.vertical_velocity, 10), -10) * 3)
	When i_get_a_message("Die"):
		check_once_if(Self.lives_count > 0):
			increase(Self.lives_count, by: -1)
			check_once_if(Self.lives_count <= 0):
				set_text(to: "Game over!", color: h(0,s:0,b:0))
				repeat_forever:
					Self.vertical_velocity = 0
					set_position(to_x: Game.width / 2, y: Game.height / 2)
			wait(seconds: 2)

bird lives_display:
	When Self.total_clones < bird.lives_count:
		create_a_clone_of_this_object
	When game_is_playing:
		set_z_index(3)
		set_size(percent: 50)
		wait(seconds: 0)
		set_origin(to_x: 16 + (Self.width + 8) * Self.clone_index, y: Game.height - 64 - Self.height)
		repeat_forever:
			check_if_else(bird.lives_count > Self.clone_index):
				set_invisibility(percent: 5)
			else:
				set_invisibility(percent: 100)

monkey score_shower:
	When game_starts:
		set_z_index(3)
	When game_is_playing:
		set_text(to: join("Score: ", with: Game.score), color: h(0,s:0,b:0))
		set_origin(to_x: Game.width - 8 - Self.width, y: Game.height - 64 - Self.height)
5 Likes

-1 is Flabbergasted! Most Astonishing Wonderful!

If we can eventually make a tool to convert Hopscotch JSON into Hopscript/Python then it would be elementary to publish Hopscotch based games to app stores.

A long time ago I used a flow chart based app that could export Xcode projects. forgetting the name of the company.

Apparently elementary is a filtered word

3 Likes

That would be awesome!!

4 Likes

I was able to decompile the flappy bird project into this code:

custom_rule kill_bird_on_contact:
	When ((absolute_value((Self.x_position - bird.x_position)) < (((Self.width + bird.width) / "2") - "10")) and (absolute_value((Self.y_position - bird.y_position)) < (((Self.height + bird.height) / "2") - "10"))):
		broadcast_message(named: "Die")

square bottom_pipe:
	When game_starts:
		set_z_index("1")
		create_a_clone_of_this_object
		create_a_clone_of_this_object
		set_width("150", height: "300")
		set_color(h("119.4", s: "53.6", b: "71"))
		set_background(color: h("211.6", s: "48.7", b: "88.6"))
		(speed = "10")
		repeat_forever:
			check_once_if((bird.lives_count >= "0")):
				increase(Game.score, by: "1")
				increase(speed, by: "0.1")

			set_position(to_x: (Game.width + (Self.width / "2")), y: random("0", to: (Self.height / "2")))
			broadcast_message(named: "Reset pipes")
			repeat(times: ((Self.x_position + Self.width) / speed)):
				set_position(to_x: (Self.x_position - speed), y: Self.y_position)



	When object_is_cloned:
		set_z_index("1")
		check_if_else((Self.clone_index == "1")):
			set_width("170", height: "50")
			set_color(h("119.4", s: "53.6", b: "71"))
			repeat_forever:
				set_position(to_x: Original_object.x_position, y: ((Original_object.y_position + (Self.height / "2")) + (Original_object.height / "2")))


		else:
			set_color(h("100", s: "53.6", b: "81"))
			set_width("10", height: "45")
			repeat_forever:
				set_position(to_x: (Original_object.x_position - "79"), y: ((Original_object.y_position + (Self.height / "2")) + (Original_object.height / "2")))



	custom_rule kill_bird_on_contact
square top_pipe:
	(gap_size = "Nonsensical")

	When game_starts:
		set_z_index("1")
		create_a_clone_of_this_object
		create_a_clone_of_this_object
		set_width("150", height: "300")
		set_color(h("119.4", s: "53.6", b: "71"))
		repeat_forever:
			set_position(to_x: bottom_pipe.x_position, y: max((((bottom_pipe.y_position + (bottom_pipe.height / "2")) + (Self.height / "2")) + gap_size), (Game.height - (Self.height / "2"))))


	When object_is_cloned:
		set_z_index("1")
		check_if_else((Self.clone_index == "1")):
			set_width("170", height: "50")
			set_color(h("119.4", s: "53.6", b: "71"))
			repeat_forever:
				set_position(to_x: Original_object.x_position, y: ((Original_object.y_position - (Self.height / "2")) - (Original_object.height / "2")))


		else:
			set_color(h("100", s: "53.6", b: "81"))
			set_width("10", height: "300")
			repeat_forever:
				set_position(to_x: (Original_object.x_position - "69"), y: Original_object.y_position)



	When i_get_a_message("Reset pipes"):
		check_once_if((Self.clone_index == "0")):
			(gap_size = random("300", to: "500"))


	custom_rule kill_bird_on_contact
bird bird:
	When game_starts:
		set_z_index("2")
		(Self.lives_count = "4")
		set_position(to_x: "100", y: (Game.height * "0.66"))

	When is_tapped(Screen):
		(Self.vertical_velocity = "5")

	When game_is_playing:
		increase(Self.vertical_velocity, by: "-0.5")
		set_position(to_x: Self.x_position, y: max("0", (Self.y_position + Self.vertical_velocity)))

	When game_is_playing:
		set_angle((max(min(Self.vertical_velocity, "10"), "-10") * "3"))

	When i_get_a_message("Die"):
		check_once_if((Self.lives_count >= "0")):
			increase(Self.lives_count, by: "-1")
			check_once_if((Self.lives_count <= "0")):
				set_text(to: "Game over!", color: h("0", s: "0", b: "0"))
				repeat_forever:
					(Self.vertical_velocity = "0")
					set_position(to_x: (Game.width / "2"), y: (Game.height / "2"))


			wait(seconds: "2")


bird lives_display:
	When (Self.total_clones < bird.lives_count):
		create_a_clone_of_this_object

	When game_is_playing:
		set_z_index("3")
		set_size(percent: "50")
		wait(seconds: "0")
		set_origin(to_x: ("16" + ((Self.width + "8") * Self.clone_index)), y: ((Game.height - "64") - Self.height))
		repeat_forever:
			check_if_else((bird.lives_count >= Self.clone_index)):
				set_invisibility(percent: "5")

			else:
				set_invisibility(percent: "100")



monkey score_shower:
	When game_starts:
		set_z_index("3")

	When game_is_playing:
		set_text(to: join("Score: ", with: Game.score), color: h("0", s: "0", b: "0"))
		set_origin(to_x: ((Game.width - "8") - Self.width), y: ((Game.height - "64") - Self.height))


It’s a bit aggresive with enclosing binary operators with parentheses (it encloses every one even if the order of operations makes that unnecessary) and it puts newlines in more places than I’d like. It also always puts literal values as strings and never numbers. The project re-compiles to something that works correctly though, so it’s decent for a first draft.

And also, it doesn’t escape string literal values correctly so a string like sneaky " in the string woudn’t decompile right

3 Likes

Impressive!!!
That was really fast.

Now that there’s a compile/decompile, this opens up a lot of new opportunities.

For one thing we can now examine famous projects more closely. Sharing code is nicer too.

What ideas should we have next?


Now it’s time to make a package manager that can benefit from python’s vast ecosystem >:)

import openai
2 Likes

this isn’t actually in python at the moment, i think ae is working on a python library to make hopcotch projects.

This is currently a whole unique alanguage based on tri-angle’s textual notation

2 Likes

Ooh interesting!
Ah that makes sense

I assume tri-angle’s approach only formats the data to make it readable. That’s pretty neat though, it’s a great way to make edits faster.

Awesome E is building a complete simulation in python then? That’s very nice.

2 Likes

tri is working on something to display blocks equivalent to the text, i copied some of the syntax from that but removed a few features i didn’t really like.

3 Likes

wait, do you guys need help with this?

1 Like

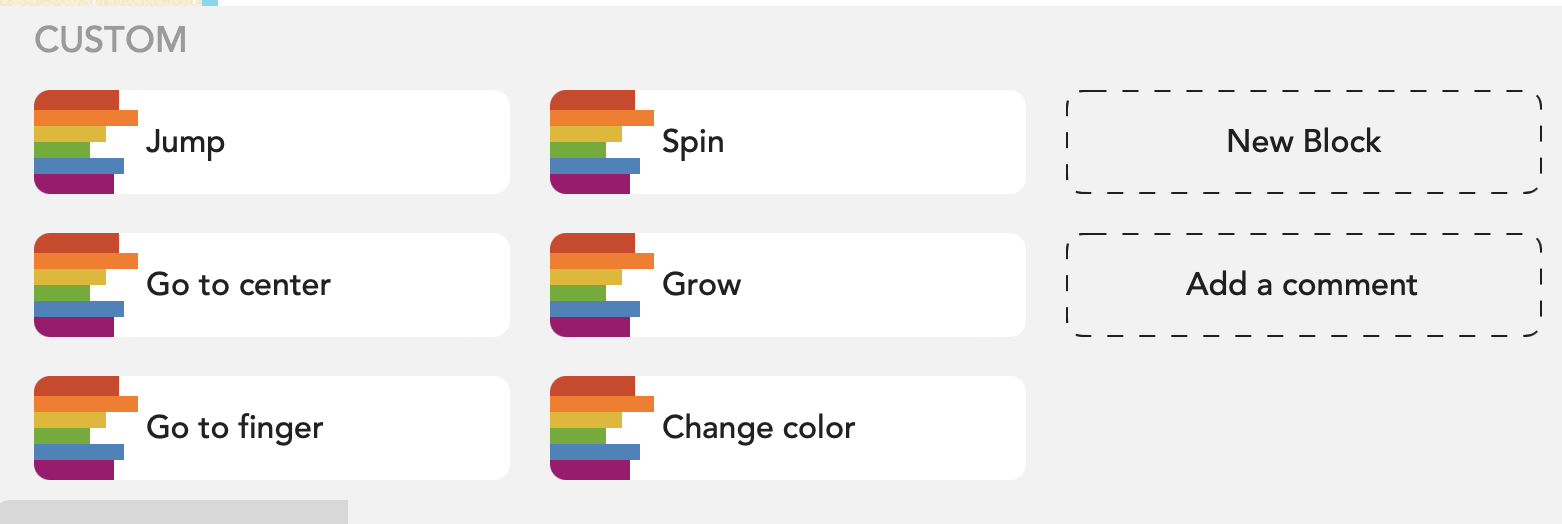

Here’s what all of the default custom blocks and custom rules look like in my text form, with a lot of extra parentheses and quotes:

custom_block change_color:
	#Changes to random colors for a while.
	repeat(times: "10"):
		set_color(random_color)
		wait_milliseconds("100")
custom_block grow:
	#Gradually get bigger.
	repeat(times: "10"):
		grow_by(percent: "10")
	send_to_back
custom_block spin(times: "5"):
	#Turn on the spot a certain number of times.
	set_speed(to: "1000")
	turn(degrees: ("360" * times))
	set_angle("0")
	set_speed(to: "400")
custom_block go_to_finger:
	#Go to the position where the screen was last tapped or pressed.
	set_position(to_x: Game.last_touch_x, y: Game.last_touch_y)
custom_block go_to_center:
	#Go to the middle of the screen.
	set_position(to_x: (Game.width / "2"), y: (Game.height / "2"))
custom_block jump:
	#Move up, do a flip, and move back down again.
	set_speed(to: "500")
	change_y(by: "100")
	turn(degrees: "360")
	change_y(by: "-100")
	set_speed(to: "400")
custom_rule fireworks(sparks: "20"):
	When game_starts:
		#Create a fireworks effect with clones. You can change how many sparks there are.
		(sparks = min("50", sparks))
		set_invisibility(percent: "100")
	When game_is_playing:
		check_once_if((Self.total_clones < sparks)):
			create_a_clone_of_this_object
	When object_is_cloned:
		set_invisibility(percent: "100")
	When is_tapped(Screen):
		#The clones go to where the finger was and move outwards, before falling and fading.
		set_speed(to: "1000")
		custom_block go_to_finger
		set_color(random("3", to: "6"))
		set_angle(random("0", to: "360"))
		set_invisibility(percent: "0")
		move_forward(random("100", to: "300"))
		set_speed(to: "50")
		change_y(by: "-50")
		set_invisibility(percent: "100")
	When (Self.insibility_as_a_percent == "0"):
		repeat(times: "50"):
			set_invisibility(percent: (Self.insibility_as_a_percent + "2"))
custom_rule drag_me:
	When is_pressed(Self):
		#Lets you move an object around by pressing on it.
		custom_block go_to_finger
custom_rule draw_like_a_pen:
	When is_pressed(Self):
		#Draws a trail whenever you press on the object.
		draw_a_trail(color: "HSB(335,89,84)", width: "10"):
			custom_block go_to_finger
	When is_tapped(Self):
		#The object also goes to your finger when the device is tapped, so that it does not draw a continuous line after lifting your finger.
		custom_block go_to_finger
custom_rule mirror_draw(symmetry: "5"):
	(symmetry = min(symmetry, "100"))
	(thickness = ("60" / symmetry))
	(horizontal_center = (Game.width / "2"))
	(vertical_center = (Game.height / "2"))
	(angle_section = ("360" / symmetry))
	(axis_of_reference = "270")
	(axis_index = "0")
	(color = random("1", to: "360"))
	When game_starts:
		#Draws the same thing rotated around the center of the screen and mirrored.
	When (Self.total_clones < min((symmetry * "2"), "200")):
		#Quickly create clones — double the number of axes of symmetry, for mirror effect.
		create_a_clone_of_this_object
	When game_starts:
		#There are double the amount of objects to the number of axes.
		(axis_index = floor((Self.clone_index / "2")))
	When object_is_cloned:
		#There are double the amount of objects to the number of axes.
		(axis_index = floor((Self.clone_index / "2")))
	When is_tapped(Screen):
		#Set a new color to use, every time the device is tapped.
		increase(color, by: "20")
	When is_pressed(Screen):
		set_invisibility(percent: "100")
	When is_not_pressed(Screen):
		set_invisibility(percent: "0")
	When is_tapped(Screen):
		(distance_from_center = square_root((((Game.last_touch_x - horizontal_center) ^ "2") + ((Game.last_touch_y - vertical_center) ^ "2"))))
		#Find angle of touch relative to the axis of reference, thanks to ThinBuffaloSr for shortened code.
		(mirror_angle_offset = ((arccos(((Game.last_touch_x - horizontal_center) / distance_from_center)) * ((Game.last_touch_y - vertical_center) / absolute_value((Game.last_touch_y - vertical_center)))) - axis_of_reference))
		(individual_angle = (axis_of_reference + (axis_index * angle_section)))
		#Adds an offset for the mirror effect around each axis.
		check_if_else((modulo(Self.clone_index, %: "2") == "0")):
			increase(individual_angle, by: mirror_angle_offset)
		else:
			increase(individual_angle, by: (mirror_angle_offset * "-1"))
		set_position(to_x: ((distance_from_center * cos(individual_angle)) + horizontal_center), y: ((distance_from_center * sin(individual_angle)) + vertical_center))
	When is_pressed(Screen):
		#Same code as in the "When device is tapped" rule, but with Draw a Trail.
		#The "When 📱device is tapped" rule makes sure that the trail is not continuous from one tap to another.
		(distance_from_center = square_root((((Game.last_touch_x - horizontal_center) ^ "2") + ((Game.last_touch_y - vertical_center) ^ "2"))))
		(mirror_angle_offset = ((arccos(((Game.last_touch_x - horizontal_center) / distance_from_center)) * ((Game.last_touch_y - vertical_center) / absolute_value((Game.last_touch_y - vertical_center)))) - axis_of_reference))
		(individual_angle = (axis_of_reference + (axis_index * angle_section)))
		check_if_else((modulo(Self.clone_index, %: "2") == "0")):
			increase(individual_angle, by: mirror_angle_offset)
		else:
			increase(individual_angle, by: (mirror_angle_offset * "-1"))
		draw_a_trail(color: h(color, s: "80", b: "85"), width: thickness):
			set_position(to_x: ((distance_from_center * cos(individual_angle)) + horizontal_center), y: ((distance_from_center * sin(individual_angle)) + vertical_center))
custom_rule bounce:
	(height = "70")
	(bounce_height = height)
	(horizontal_velocity = "4")
	(vertical_velocity = "0")
	When game_is_playing:
		#You can tilt your device left and right to move the object horizontally.
		(horizontal_velocity = (Game.tilt_right_percent / "4"))
	When game_is_playing:
		#Add gravity and make sure that the object keeps moving every frame.
		increase(vertical_velocity, by: "-4")
		set_position(to_x: (Self.x_position + horizontal_velocity), y: (Self.y_position + vertical_velocity))
	When (Self.y_position < "50"):
		#Make the object bounce when it hits the ground.
		(vertical_velocity = bounce_height)
		check_once_if((vertical_velocity >= "4")):
			increase(bounce_height, by: "-3")
	When is_tapped(Screen):
		#Make the object bounce when the device is tapped.
		(bounce_height = height)
custom_rule make_a_grid(size: "5"):
	(columns = size)
	(rows = size)
	(column_number = "0")
	(row_number = "0")
	(spacing = Self.height)
	(start_cloning = "0")
	(start_x = "100")
	(start_y = (Game.height - "100"))
	When game_starts:
		#Create a square grid of clones of this object.
	When game_starts:
		#You can remove this Set Position block if you’d like the grid to start where the character is.
		set_position(to_x: start_x, y: start_y)
		create_a_clone_of_this_object
	When object_is_cloned:
		#A clone inherits the properties of the object it was cloned from.
		#To make the next clone in the row, the clone will move right.
		set_position(to_x: (Self.x_position + spacing), y: Self.y_position)
		increase(column_number, by: "1")
		check_once_if((column_number == columns)):
			#To create a new row, the clone will move all the way left and move down.
			set_position(to_x: (Self.x_position - (column_number * spacing)), y: (Self.y_position - spacing))
			(column_number = "0")
			increase(row_number, by: "1")
		check_once_if(not(((row_number == (rows - "1")) and (column_number == (columns - "1"))))):
			#If this is not the last clone in the grid, continue making a clone of this object.
			check_once_if((Self.total_clones < (columns * rows))):
				#don’t make too many clones
				set_invisibility(percent: "0")
				create_a_clone_of_this_object
custom_rule gradient(color1: "Purple", color2: "Yellow"):
	(start_hue = "0")
	(end_hue = "0")
	When game_starts:
		#Draws a gradient background between two colors.
		set_invisibility(percent: "100")
		check_if_else((color1 MATCHES "red")):
			(start_hue = "0")
		else:
			check_if_else((color1 MATCHES "orange")):
				(start_hue = "20")
			else:
				check_if_else((color1 MATCHES "yellow")):
					(start_hue = "60")
				else:
					check_if_else((color1 MATCHES "green")):
						(start_hue = "100")
					else:
						check_if_else((color1 MATCHES "blue")):
							(start_hue = "200")
						else:
							check_if_else((color1 MATCHES "purple")):
								(start_hue = "270")
							else:
								check_if_else((color1 MATCHES "pink")):
									(start_hue = "330")
								else:
									(start_hue = random("1", to: "360"))
		check_if_else((color2 MATCHES "red")):
			(end_hue = "0")
		else:
			check_if_else((color2 MATCHES "orange")):
				(end_hue = "20")
			else:
				check_if_else((color2 MATCHES "yellow")):
					(end_hue = "45")
				else:
					check_if_else((color2 MATCHES "green")):
						(end_hue = "100")
					else:
						check_if_else((color2 MATCHES "blue")):
							(end_hue = "200")
						else:
							check_if_else((color2 MATCHES "purple")):
								(end_hue = "270")
							else:
								check_if_else((color2 MATCHES "pink")):
									(end_hue = "330")
								else:
									(end_hue = random("1", to: "360"))
		(y_delta = "15")
		(starting_x = (Self.width * "-1"))
		(starting_y = (Self.height * "-1"))
		(number_of_lines = ((Game.height + Self.height) / y_delta))
		#Choose the shorter distance between the two colors.
		(hue_delta_magnitude = min(min(modulo(absolute_value((end_hue - start_hue)), %: "360"), modulo(absolute_value(((start_hue + "360") - end_hue)), %: "360")), modulo(absolute_value(((end_hue + "360") - start_hue)), %: "360")))
		(hue_delta_direction = ((end_hue - start_hue) / absolute_value((end_hue - start_hue))))
		check_once_if((hue_delta_magnitude == ((end_hue + "360") - start_hue))):
			(hue_delta_direction = "1")
		check_once_if((hue_delta_magnitude == ((start_hue + "360") - end_hue))):
			(hue_delta_direction = "-1")
		(hue_delta = (hue_delta_magnitude * hue_delta_direction))
		#Draw horizontal stripes starting from the bottom of the screen, moving up and changing the color each time.
		set_origin(to_x: starting_x, y: starting_y)
		repeat(times: number_of_lines):
			draw_a_trail(color: h((((Self.y_position / Game.height) * hue_delta) + start_hue), s: "86", b: "96"), width: y_delta):
				set_origin(to_x: Game.width, y: Self.origin_y)
			set_origin(to_x: starting_x, y: (Self.origin_y + y_delta))
		custom_block go_to_center
		broadcast_message(named: "done drawing")
	When message_matches("done drawing"):
		set_invisibility(percent: "0")
custom_rule tap_to_change_scene:
	When is_tapped(Screen):
		change_scene(to: Next_scene)


5 Likes

where is “act like a balloon” smh

4 Likes

It popped


5 Likes

oh no! this is a tragedy or something

3 Likes

?

1 Like
